Surgeon Pendant Supplier in India – Ceiling Mounted Surgical Pendants
Bio Meditech assists hospitals, surgical centres, super-speciality centres, and ICUs across India with designing, fabricating, supplying, and commissioning certified Double Arm Articulated OT Pendants, Motorized Height Adjustable Pendant Columns, and HTM 02-01 Compliant Medical Gas Pendants.
Arm Structure
Extruded Al 6063-T6
Payload Capacity
180kg - 250kg Load
Braking Tech
Pneumatic / Electric
Service Scope
Lucknow & Pan-India
Surgeon Pendant Models & Installation Showcase
Explore Bio Meditech's articulated ceiling pendants, anesthesia columns, and endoscopy towers. Click any model to view high-resolution hospital photography and engineering parameters.
Double Arm Articulated OT Pendant System

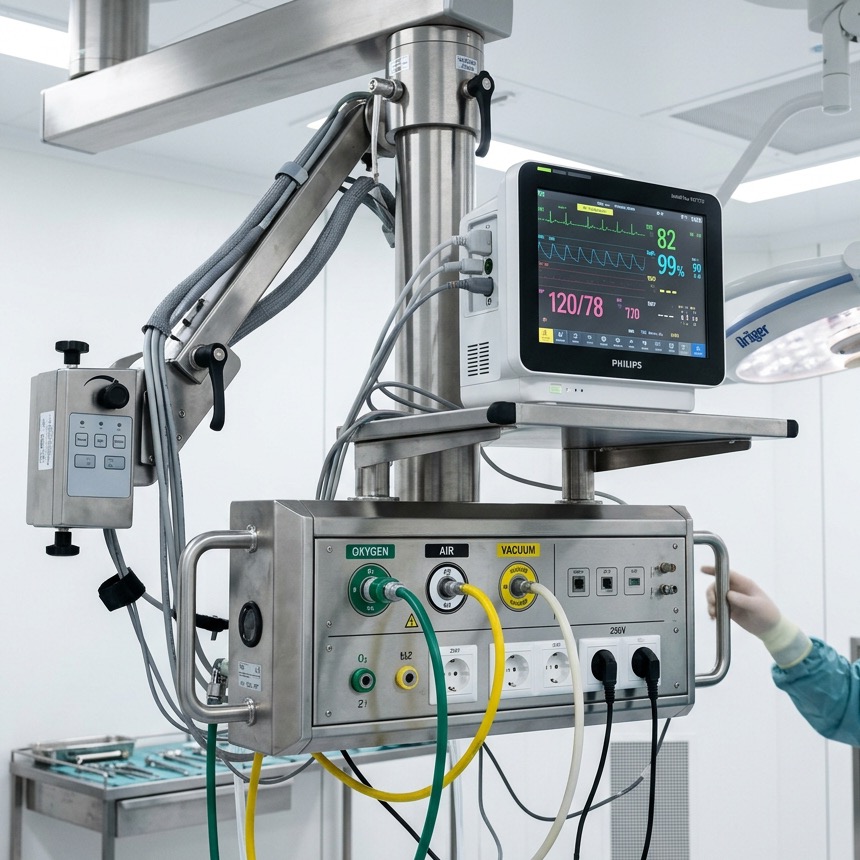

Single Arm Surgical Utility Column

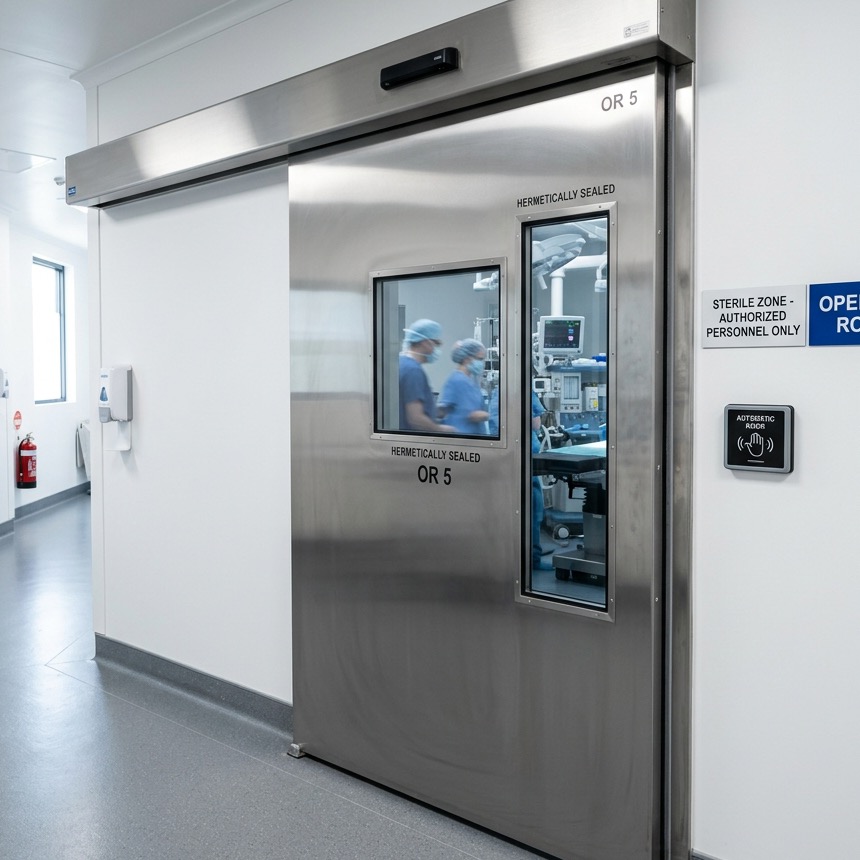

Motorized Height Adjustable Pendant Column

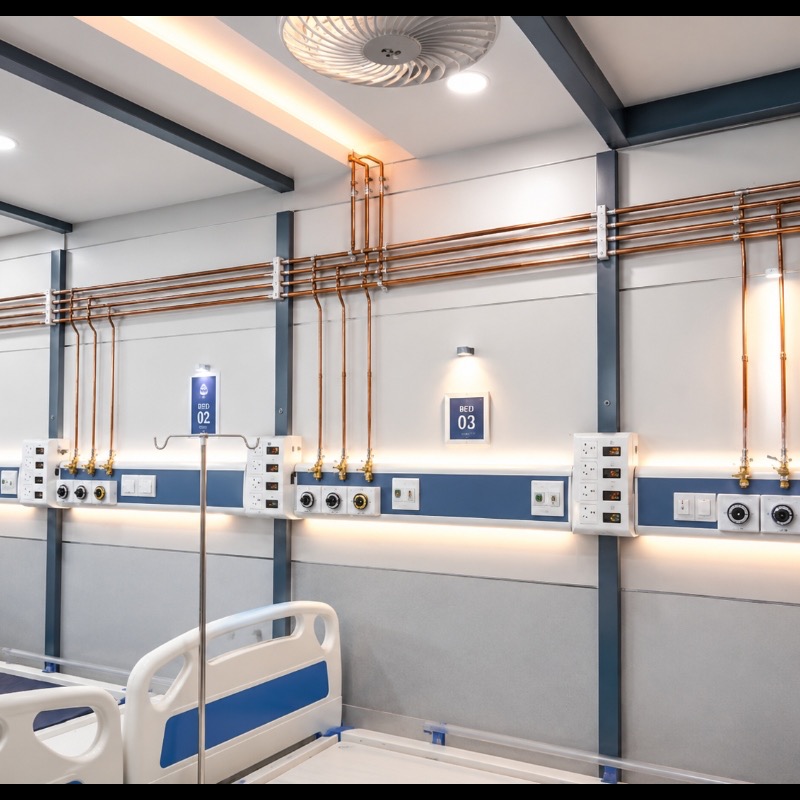

Modular OT Medical Gas Terminal Console

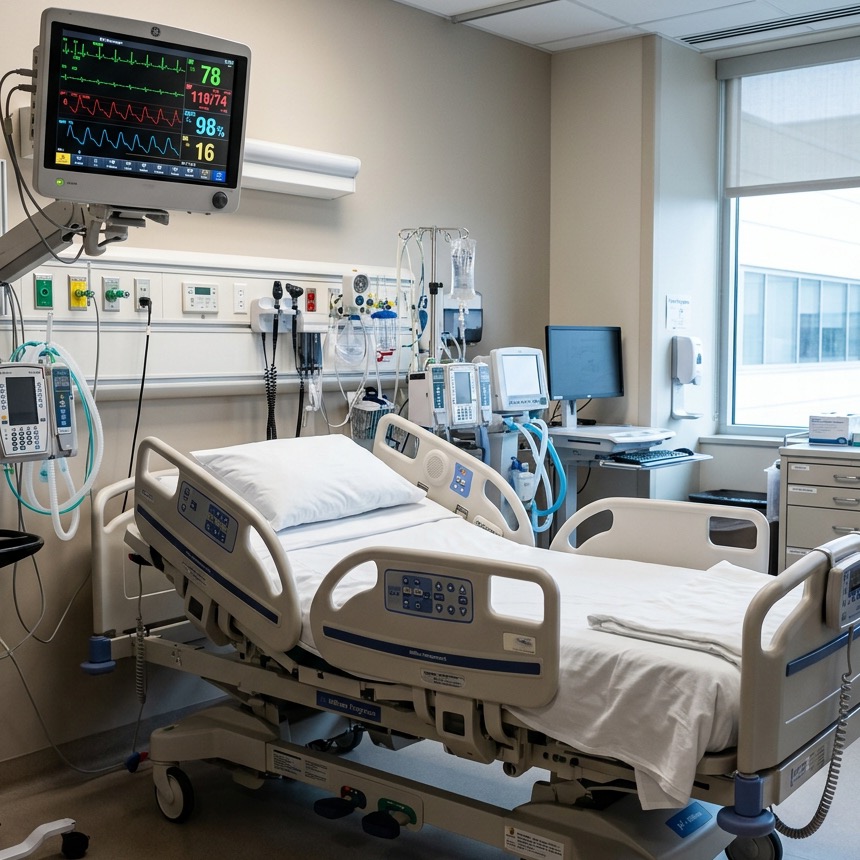

Anesthesia Ceiling Pendant Workstation

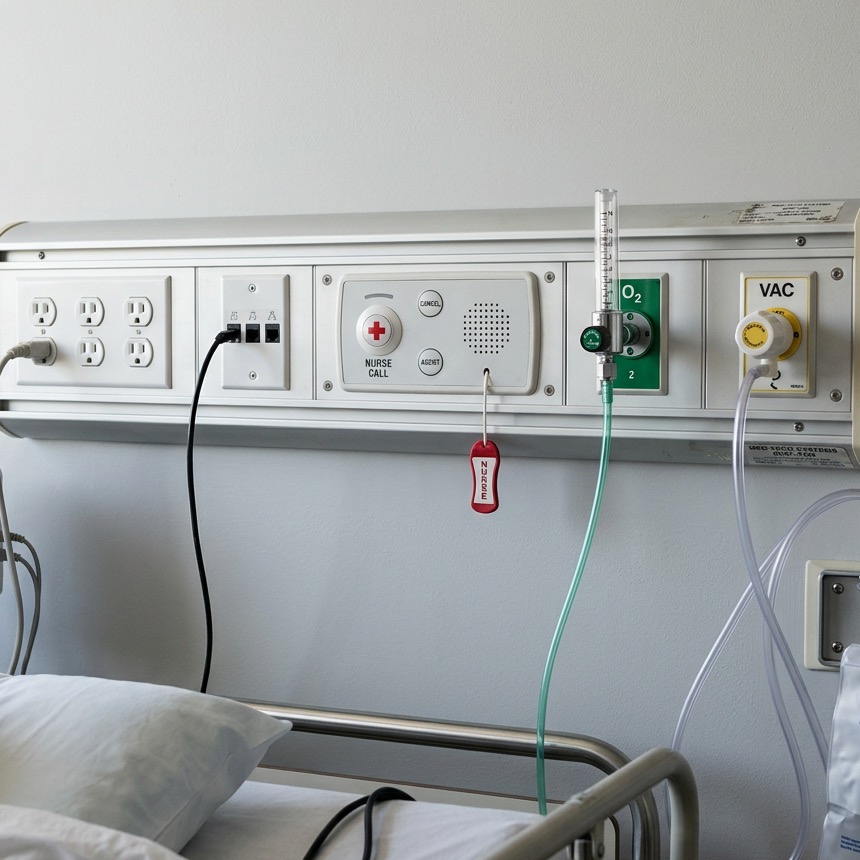

Laparoscopy & Endoscopy Tower Shelving

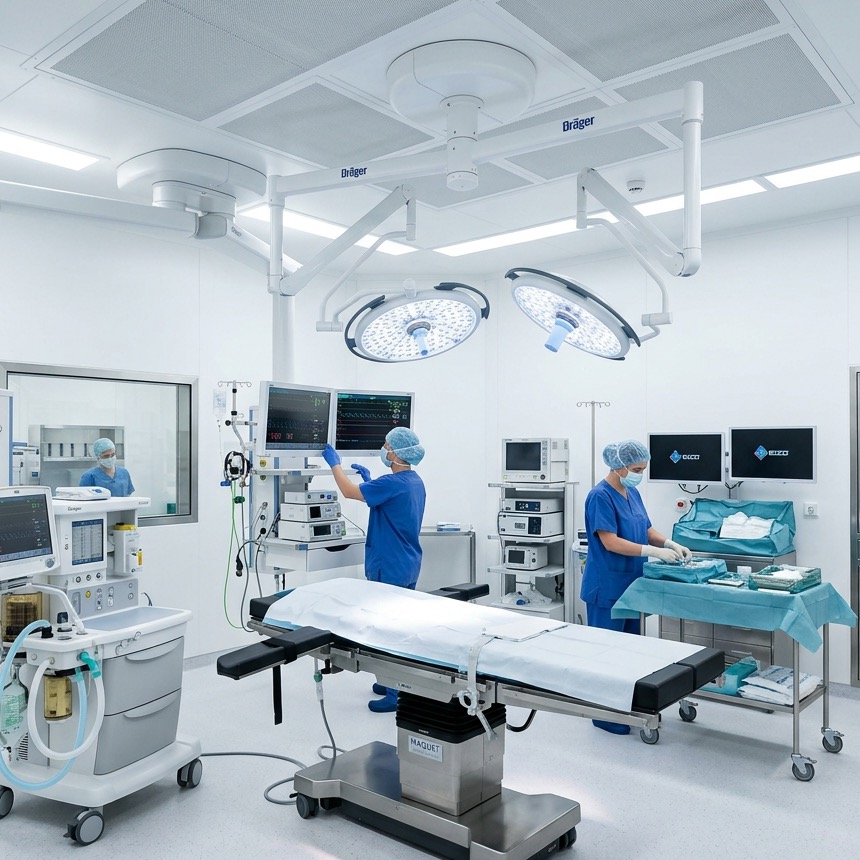

Dual Pneumatic & Electromagnetic Brake System

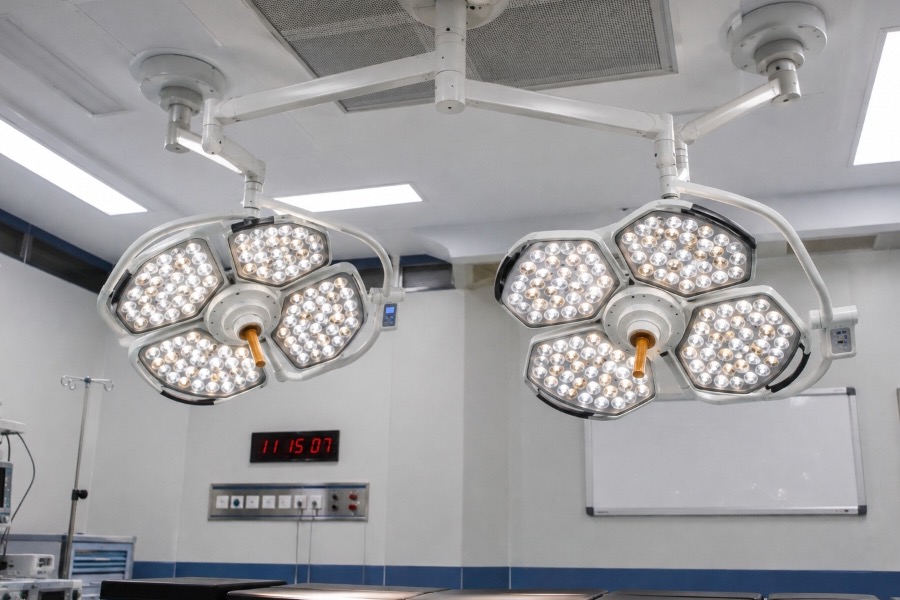

Ceiling Structural Unistrut Anchor Substructure

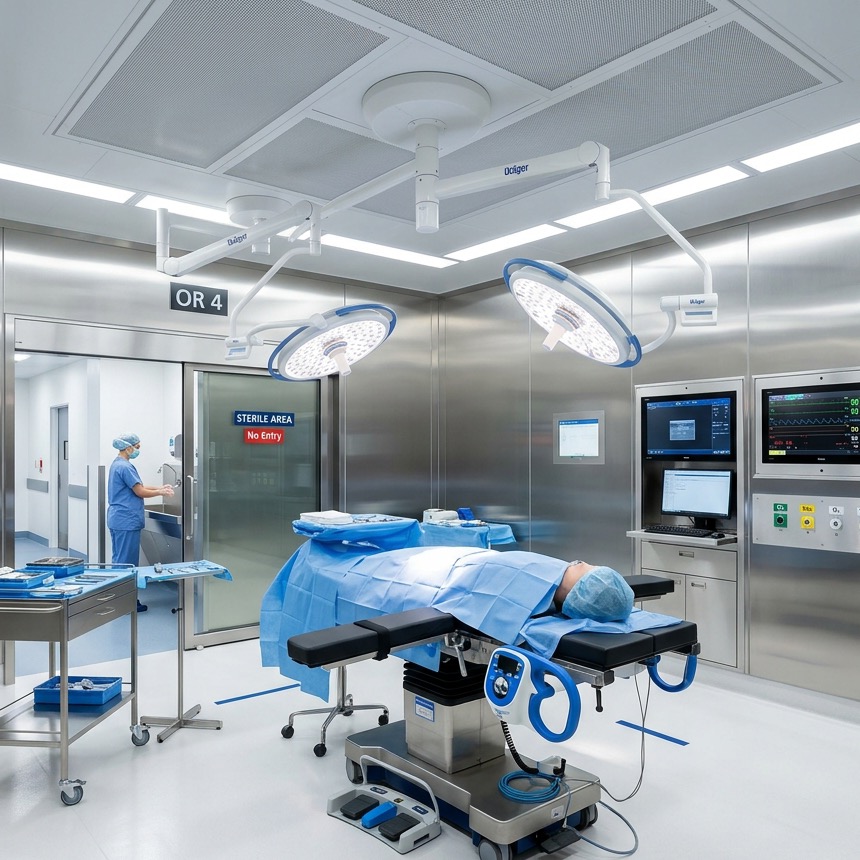

HTM 02-01 Gas Testing & NABH Handover
Transparent Price Range & Institutional Tenders
Bio Meditech provides direct hospital procurement pricing with no intermediary dealer commissions. Indicative pricing guidelines for Indian healthcare facilities:
Single Arm Mechanical Surgical Pendant:
₹95,000 – ₹1,80,000
Single 800mm swivel arm, 330° rotation, 4 gas outlets, 6 sockets, 2 shelves
Double Arm Articulated OT Pendant:
₹1,85,000 – ₹3,20,000
Dual 600+800mm arms, pneumatic brakes, 6 gas outlets, 8-12 sockets, 3 shelves + drawer
Motorized Height Adjustable Electric Pendant:
₹3,25,000 – ₹4,80,000
Motorized vertical lift (300-600mm stroke), dual articulation, push-button controls
Laparoscopy / Endoscopy Workstation Suite:
₹4,50,000 – ₹7,50,000+
220kg load capacity, multi-monitor swivel arms, video/data integration, AGSS & gas
Top Buyer Search Queries Covered
10-Competitor Head-to-Head Benchmark Analysis
Bio Meditech benchmarked against leading global and national surgical pendant manufacturers (including Draeger, Stryker, Maquet/Getinge, Mindray, Hospitech, Narang Medical, GPC Medical, SI Surgical, Mediland, and Technomed) across technical parameters:
| Specification Parameter | Bio Meditech Engineering | Standard Market Practice (10 Brands) | Clinical Advantage |
|---|---|---|---|
| Arm Extrusion & Payload Capacity | Heavy-duty 6063-T6 aircraft-grade extruded aluminum (180kg - 250kg safe load capacity) | Thin commercial aluminum profiles rated for only 100kg - 130kg (prone to arm sagging under laparoscopy towers) | Handles full endoscopy/laparoscopy stacks without structural deflection |
| Rotation Range & Safety Limiters | 330° continuous smooth swivel on both joints with adjustable internal limit stops | Fixed 300° stops or stiff manual swivel that wears out pivot bearings | Full-room positioning flexibility without twisting internal gas tubes and power cables |
| Braking Mechanism | Dual Pneumatic & Electromagnetic friction disc brakes with ergonomic handle buttons | Basic manual thumb-screw friction brakes that slip when equipment is touched | Zero-drift rock-solid lock; releases effortlessly with one-touch button |
| Internal Utility Channel Segregation | Triple isolated chambers separating Medical Gas, 220V High Voltage, and Low Voltage Video/Data | Single hollow column or partial divider where high-voltage wires run alongside oxygen hoses | Full HTM 02-01 & NFPA 99 compliance; zero electromagnetic interference on 4K camera signals |
| Gas Outlets & Maintenance Valves | BS 5682 / DIN 13260-2 color-coded terminals with secondary maintenance shut-off valves | Standard single-stage brass fittings requiring complete OT pipeline shutdown for seal servicing | Zero gas leakage; individual outlets can be serviced without interrupting surgeries |
| Ceiling Structural Mounting Substructure | Engineered galvanized Unistrut steel framework anchored directly to RCC roof slab with chemical fasteners | Haphazard on-site angle iron fabrication left to third-party civil contractors | Certified load-bearing seismic stability; zero ceiling false ceiling cracking |
| Turnkey Commissioning & NABH Support | Complete turnkey mounting, gas silver brazing, 24-hr pressure tests & NABH validation certificates | Box delivery only; hospitals must hire separate plumbers and electricians | One-stop turnkey accountability with experienced biomedical engineers |
Ceiling Mounted Surgical Pendant Engineering Overview
Optimizing surgical workflow, clearing floor cables & delivering high-density utilities
As a leading Surgeon Pendant Supplier in India, Bio Meditech manufactures, supplies, and installs heavy-duty ceiling-mounted surgical pendants, anesthesia workstations, and endoscopy towers for modular operation theatres, cardiac cath labs, and intensive surgical suites.
Our pendants are engineered using high-tensile 6063-T6 aircraft-grade extruded aluminum alloy profiles, providing high load-bearing capacity (180kg to 250kg) with smooth 330-degree rotation across dual articulated joints. Internal physical partitions maintain strict separation between high-voltage power conduits, low-voltage 4K video/data cables, and medical gas copper tubing, adhering to HTM 02-01, NFPA 99, and BS EN ISO 11197 international standards.
By lifting dangerous gas hoses, cables, and equipment carts completely off the theatre floor, Bio Meditech surgical pendants maximize sterile working space, enhance infection control, and enable surgical teams to reposition monitors and electrosurgical instruments with zero drift.
Technical Specifications & Engineering Parameters
6063-T6 Extruded Aluminum Alloy, electrostatic anti-microbial powder coat
330° dual rotation on both primary & secondary swivel joints with safety stops
180kg to 250kg payload capacity across adjustable equipment shelves
Pneumatic friction disc brakes (compressed air) or electromagnetic push-button locks
4 to 8 outlets (O2, N2O, Air 4 Bar, Air 7 Bar, Vac, AGSS) BS 5682 / DIN 13260-2
8 to 16 universal 6/16A sockets + POAG equipotential grounding (IEC 60601-1)
Optional 300mm to 600mm motorized vertical travel with foot/hand control
HTM 02-01, NFPA 99, BS EN ISO 11197, ISO 13485, CE & NABH ready
6-Step Surgeon Pendant Turnkey Installation & Verification Process
OT Ceiling Height & Structural RCC Slab Audit
Surveying true ceiling height, false ceiling plenum, HVAC ducting paths, and structural slab thickness for anchor bolting.
Galvanized Unistrut Steel Substructure Fabrication
Fabricating and installing heavy-duty unistrut steel support framework anchored with certified M16 chemical expansion bolts.
Ceiling Column Drop & Articulated Arm Leveling
Suspending the vertical drop column, aligning dual articulated swivel arms with precision digital spirit levels to prevent drift.
Copper Gas Silver Brazing & Electrical Segregation
Connecting degreased copper lines with continuous inert nitrogen purging and pulling isolated high/low voltage conduits.
Pneumatic Brake Calibration & 24-Hour Gas Pressure Testing
Tuning pneumatic friction disc brakes, checking zero-drift under 200kg test load, and conducting 24-hr 12-bar nitrogen hold tests.
Cross-Connection Gas Checks, NABH Certification & Handover
Performing anti-cross connection testing, issuing HTM 02-01 commissioning logs, and conducting clinical operational staff training.
Why Choose Bio Meditech Lucknow
High Payload Engineering: 6063-T6 aluminum arms tested up to 250kg payload with zero deflection or vibration.
Certified Structural Safety: Custom engineered ceiling substructures with chemical anchor bolting matching seismic standards.
HTM 02-01 & NABH Compliance: Pressure testing, cross-connection checks, and comprehensive documentation for hospital audits.
Direct Technical Team in UP: Factory-trained biomedical engineers based in Lucknow for fast dispatch, installation, and AMC.
Frequently Asked Questions (FAQs)
What is the price of a ceiling-mounted surgeon pendant in India?
In India, surgeon pendant pricing ranges from ₹95,000 to ₹1,80,000 for single-arm mechanical utility pendants, ₹1,85,000 to ₹3,20,000 for heavy-duty double-arm articulated OT pendants with pneumatic brakes, ₹3,25,000 to ₹4,80,000 for motorized height-adjustable electric lift pendants, and ₹4,50,000 to ₹7,50,000+ for fully loaded laparoscopy and endoscopy workstation suites. Bio Meditech provides direct manufacturer procurement pricing and custom GeM tender BOQ quotations.
What is the difference between a single arm and double arm surgical pendant?
A single arm pendant features one swivel arm (usually 600mm to 800mm length) with 330° rotation, suitable for smaller operating rooms, endoscopy suites, or fixed surgical positions. A double arm pendant features two articulated arms (e.g., 600mm + 800mm or 800mm + 800mm) offering dual 330° rotation joints, providing a vast working radius of up to 1.6 meters so the pendant head can be smoothly transferred between both sides of the operation table.
How does the motorized vertical lift pendant operate?
A motorized pendant includes an integrated electric linear actuator inside the vertical column. By pressing the up/down push-buttons on the shelf handle, surgical staff can adjust the height of monitors and equipment trays smoothly over a 300mm to 600mm stroke, catering to tall or seated surgeons and ensuring ergonomic eye-level laparoscopic viewing.
What ceiling structural support is required to install an OT pendant?
Ceiling pendants carry substantial dynamic loads (up to 250kg equipment + arm weight). They cannot be anchored to false ceiling grids. Bio Meditech installs a pre-fabricated heavy-duty galvanized Unistrut steel framework anchored directly into the true concrete RCC roof slab using high-tensile chemical expansion anchors before the false ceiling is closed.
How are medical gases and power cables safely isolated inside the articulated arms?
Bio Meditech pendants feature triple internal isolated aluminum ducts. High-voltage 220V power wiring, low-voltage sensitive data/video cables (HDMI, DVI, RJ45), and medical gas copper tubing run through separate physical chambers. This prevents any electromagnetic noise on video endoscopy feeds and eliminates spark hazards around pure oxygen.
What documentation is provided for NABH hospital accreditation audits?
Bio Meditech issues a comprehensive NABH validation dossier comprising ISO 13485 / CE certificates, 24-hour nitrogen pressure drop test reports, gas anti-cross connection verification logs, and electrical equipotential earth impedance test records.
Does Bio Meditech provide on-site installation and service across Uttar Pradesh and India?
Yes. Headquartered in Lucknow, our biomedical engineering teams handle complete turnkey civil ceiling anchoring, copper gas silver brazing, pneumatic brake tuning, and hospital staff operational training across Lucknow, Kanpur, Varanasi, Gorakhpur, Prayagraj, Noida, Patna, and throughout India.
Need Technical Guidance?
Speak with our OT engineering specialists
Call us directly to discuss ceiling heights, arm lengths, gas terminal outlet quantities, or to request a customized turnkey quotation for your modular operation theatre.
