Medical Oxygen Flow Meters & Humidifier Bottles
Precision back-pressure compensated medical oxygen flow meters paired with unbreakable, 121°C autoclavable polycarbonate humidifier bottles. Built with solid forged brass chrome-plated bodies, micro-needle valves, and gas-specific quick-connect probes for general wards, ICUs, and pediatric resuscitation across Indian hospitals.

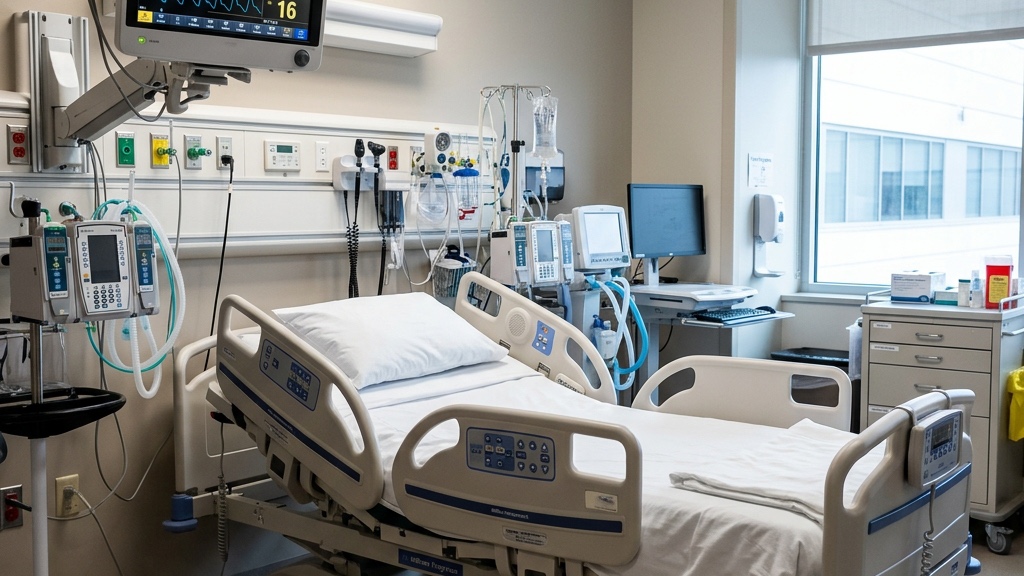

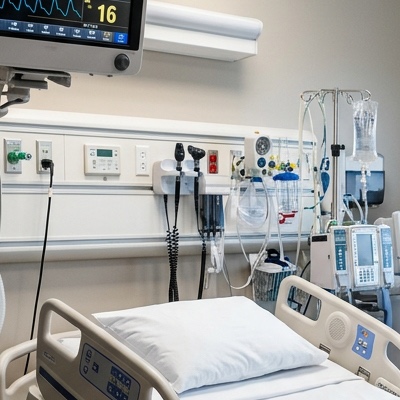

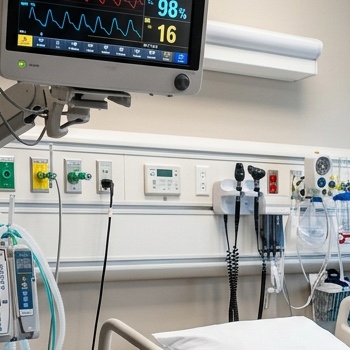

Back-pressure compensated flow meter and humidifier bottle installed on ICU bed head panel.
9 Specialized Oxygen Flow Meter Configurations
Click any model to inspect rotameter flow tubes, micro-needle valves, autoclavable humidifier bottles, and pediatric micro-flow accuracy.
Back-Pressure Compensated Oxygen Flow Meter (0–15 LPM with Humidifier)
Engineered for adult bedside oxygen therapy across general wards and intensive care units. Features a precision back-pressure compensated rotameter tube ensuring reading accuracy even when connected to humidifiers or nebulizers, paired with a solid chrome-plated brass body and unbreakable 250ml polycarbonate humidifier bottle.
Core Technical Construction Metrics
Back-Pressure Compensation
Designed with the needle control valve situated downstream of the indicator float. This ensures the gas inside the rotameter tube remains at 4.2 bar pipeline pressure, guaranteeing that the indicated float position reflects the true delivered flow rate without distortion from humidifiers or nebulizers.
- True delivered flow accuracy ±5%
- Stable indicator float with zero bobbing
- 10 bar burst pressure rated polycarbonate tube
Autoclavable Humidifier Bottle
Manufactured from virgin medical-grade polycarbonate capable of repeated steam autoclave sterilization at 121°C. Fitted with a 2 psi safety pop-off relief valve that emits an audible alarm if downstream nasal tubing becomes pinched or occluded.
- 250ml capacity with clear MIN/MAX water levels
- Sintered bronze micro-bubble diffuser tube
- Audible kink/occlusion warning relief valve
Surgical Brass Construction
The flow meter body is hot-forged from CW617N medical brass, precision CNC machined, and finished with mirror chrome plating. The high-precision stainless steel needle valve spindle prevents gas leakage and wear across hundreds of thousands of flow adjustments.
- Solid forged brass body with electrolytic chrome
- British Standard BS 5682 quick-connect probe
- Double O-ring seal preventing micro gas loss
Technical Specifications: Bio Meditech Oxygen Flow Meter Series
ISO 15002 & HTM 02-01 Compliant| Parameter | Standard Adult Flow Meter | Pediatric Micro-Flow Meter | Twin Dual Flow Meter Station |
|---|---|---|---|
| Flow Range & Scale | 0 to 15 LPM (1 LPM steps, 0.5 below 5) | 0 to 5 LPM (0.25) / 0 to 1 LPM (0.1) | Dual 0 to 15 LPM (Independent controls) |
| Measurement Accuracy | ±5% of Full Scale Reading | ±3% of Full Scale Reading | ±5% of Full Scale Reading per tube |
| Nominal Inlet Pressure | 4.2 bar / 60 psi (Pipeline Standard) | 4.2 bar / 60 psi (Pipeline Standard) | 4.2 bar / 60 psi (Pipeline Standard) |
| Body & Valve Material | Chrome-Plated Extruded Brass Body | Chrome-Plated Brass with Fine Pitch Spindle | Forged Brass Dual-Tee Chrome Assembly |
| Flow Tube & Shield | Unbreakable Polycarbonate Inner & Outer Tube | Optical Grade Clear Polycarbonate | Twin Polycarbonate Tubes with Stainless Floats |
| Humidifier Bottle | 250ml Polycarbonate, 121°C Autoclavable | 150ml / 250ml Micro-Diffuser Bottle | Dual 250ml Bottles or 1 Bottle + 1 DISS Outlet |
| Safety Relief Valve | Audible Pop-Off Valve at 2 psi (0.14 bar) | Audible Pop-Off Valve at 2 psi (0.14 bar) | Dual Audible Pop-Off Valves at 2 psi |
| Gas Inlet Standard | BS 5682 / DIN 13260 / Ohmeda Quick-Probe | BS 5682 / DIN 13260 Quick-Probe | BS 5682 Quick Probe / Medical Rail Clamp |
