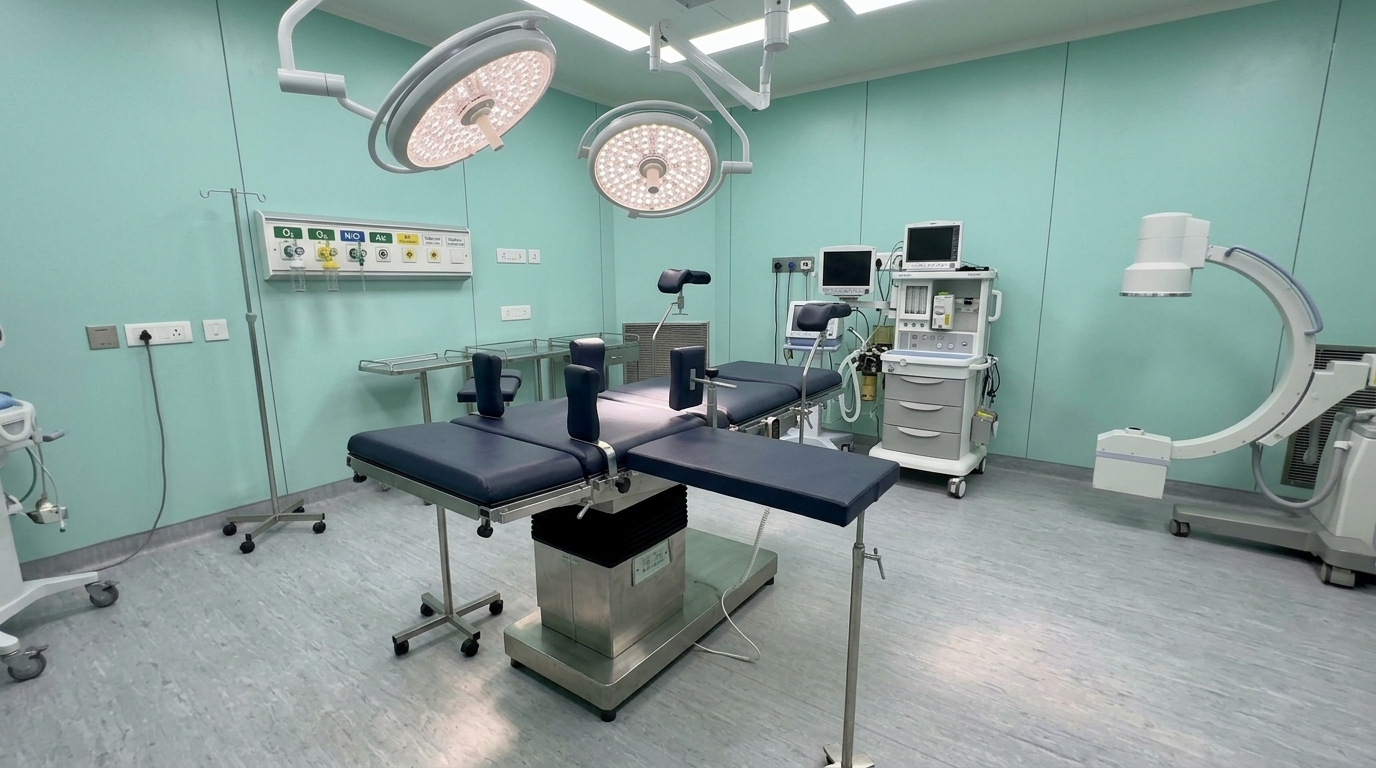

OT Table Supplier in India – Electro-Hydraulic & C-Arm Compatible Operating Tables
Bio Meditech assists hospitals, nursing homes, and surgical centers across India with selecting, sourcing, delivering, setting up, and commissioning heavy-duty electro-hydraulic OT tables and specialty surgical attachments.
Drive System
Electro-Hydraulic
C-Arm Access
Longitudinal Slide
Load Capacity
Up to 250 kg
Service Scope
Lucknow & Pan-India
Operating Table Models & Installation Showcase
Explore Bio Meditech's electro-hydraulic operating tables and surgical specialty attachments. Scroll horizontally or use controls to view configurations.

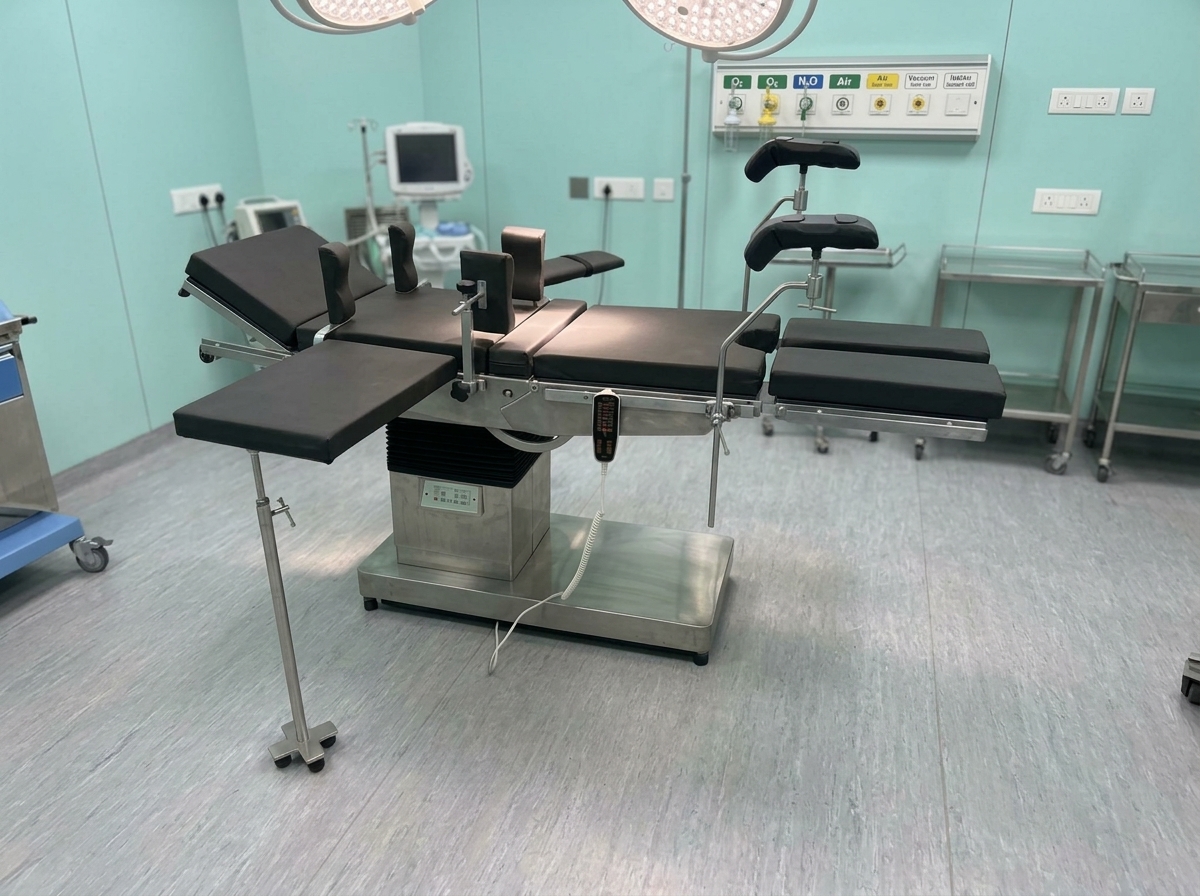

Electro Hydraulic OT Table

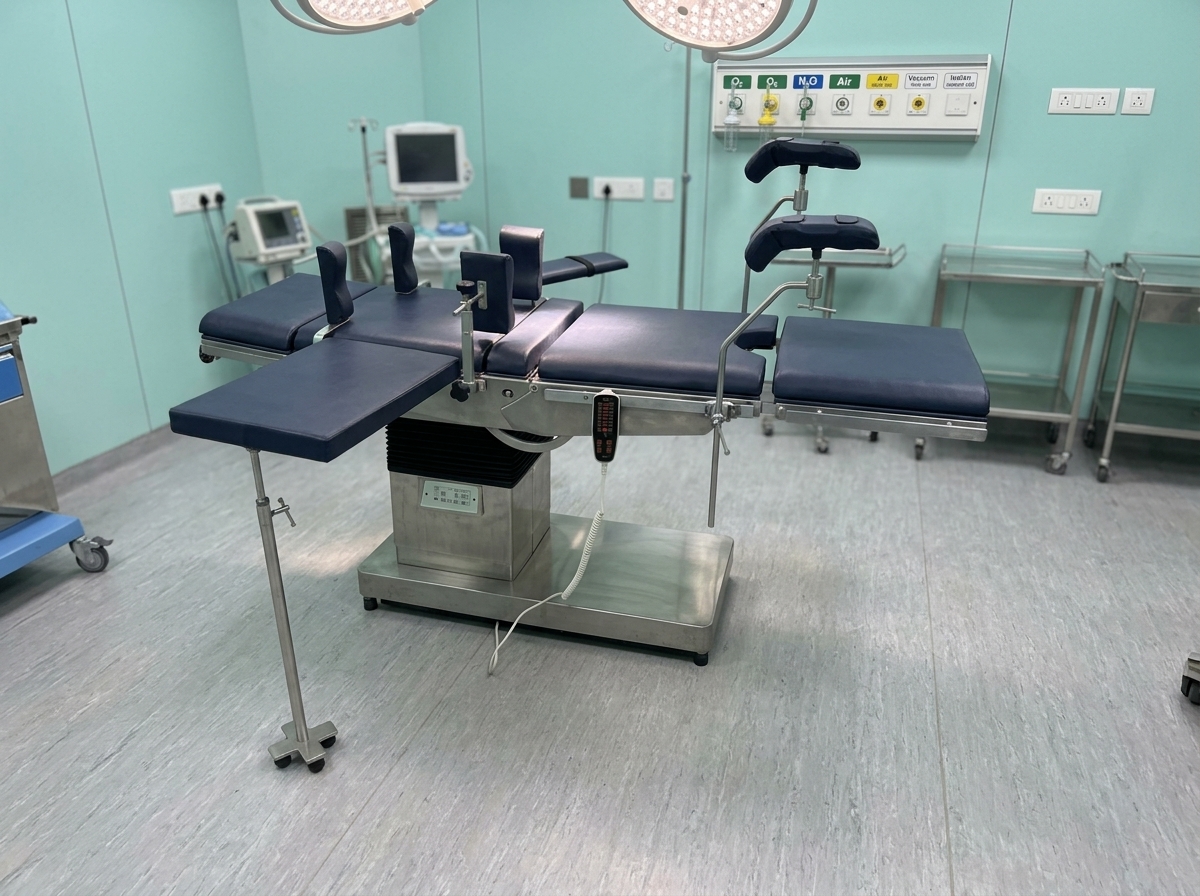

C Arm Operation Table (C Arm Table)

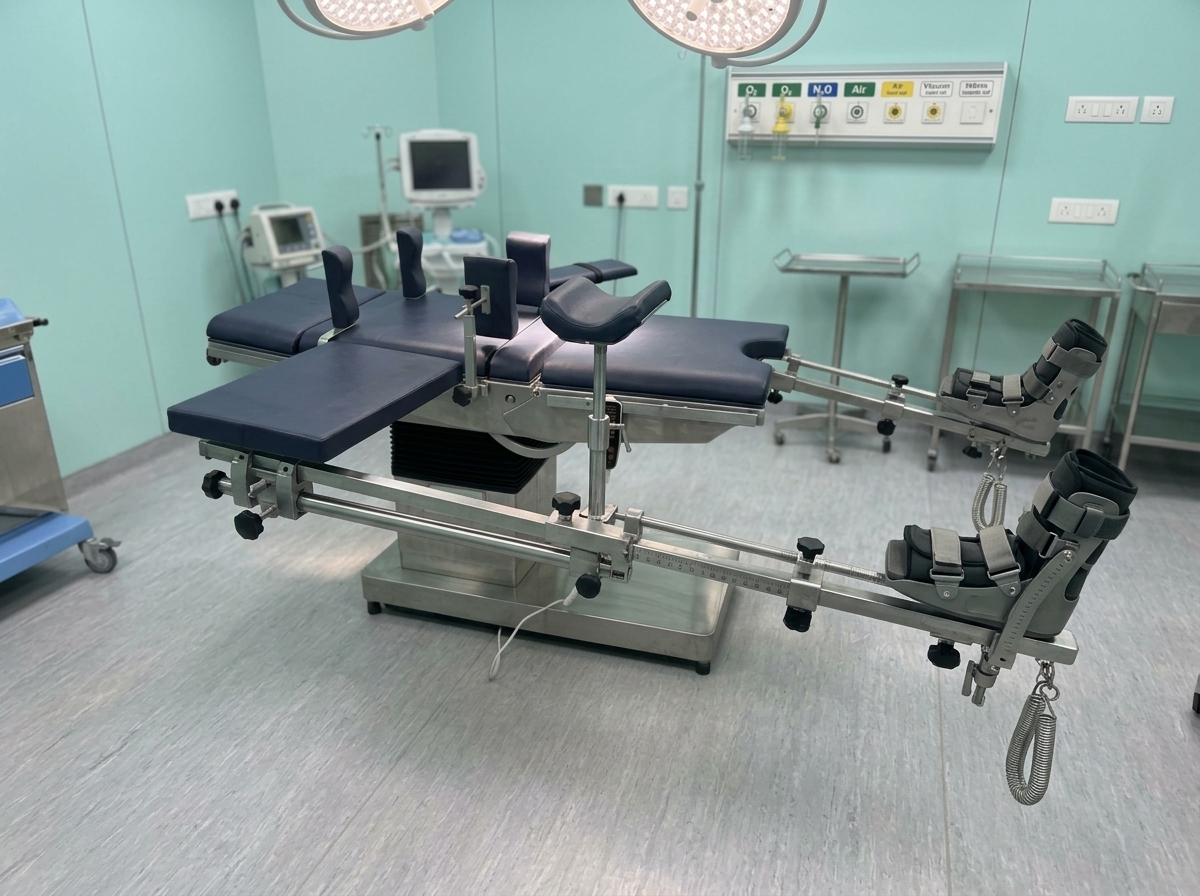

Orthopedic OT Table (with Traction Attachment)

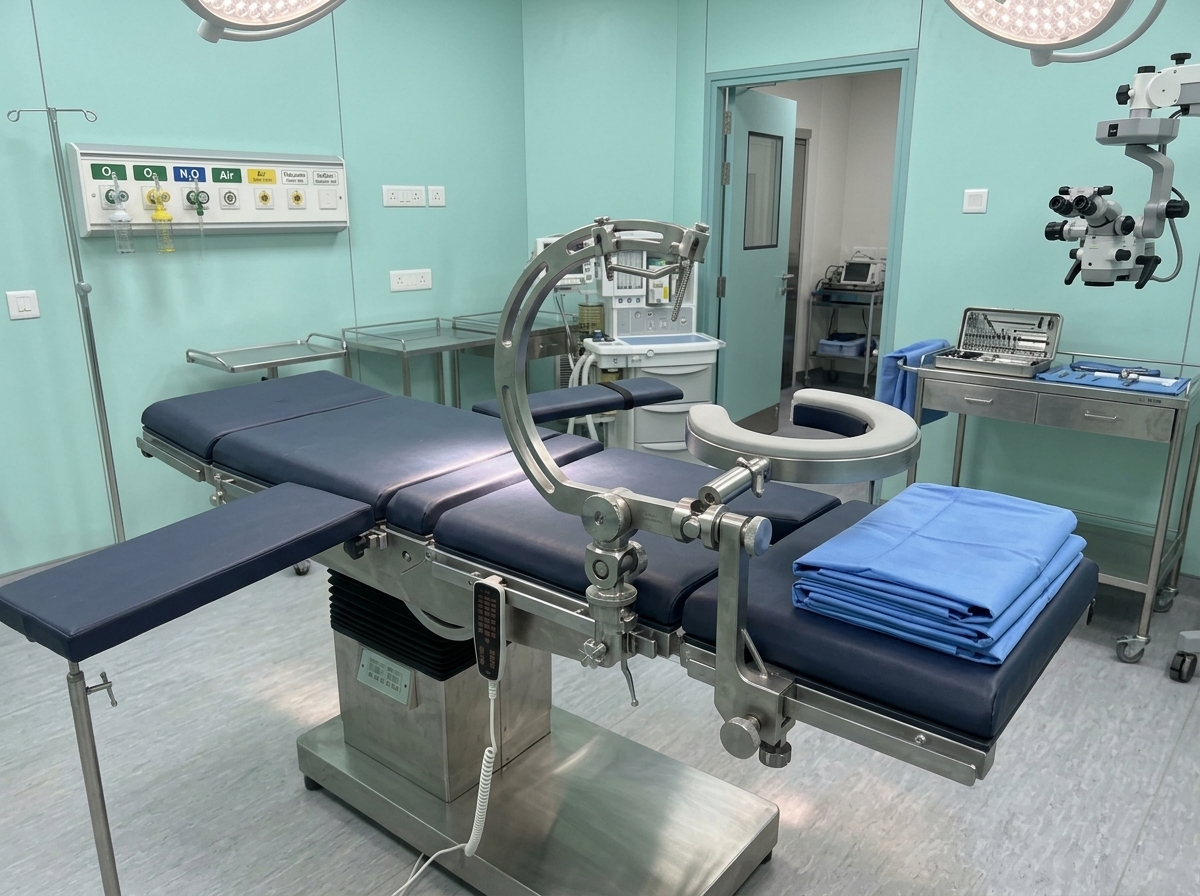

Neurosurgery OT Table (with Skull Clamp)

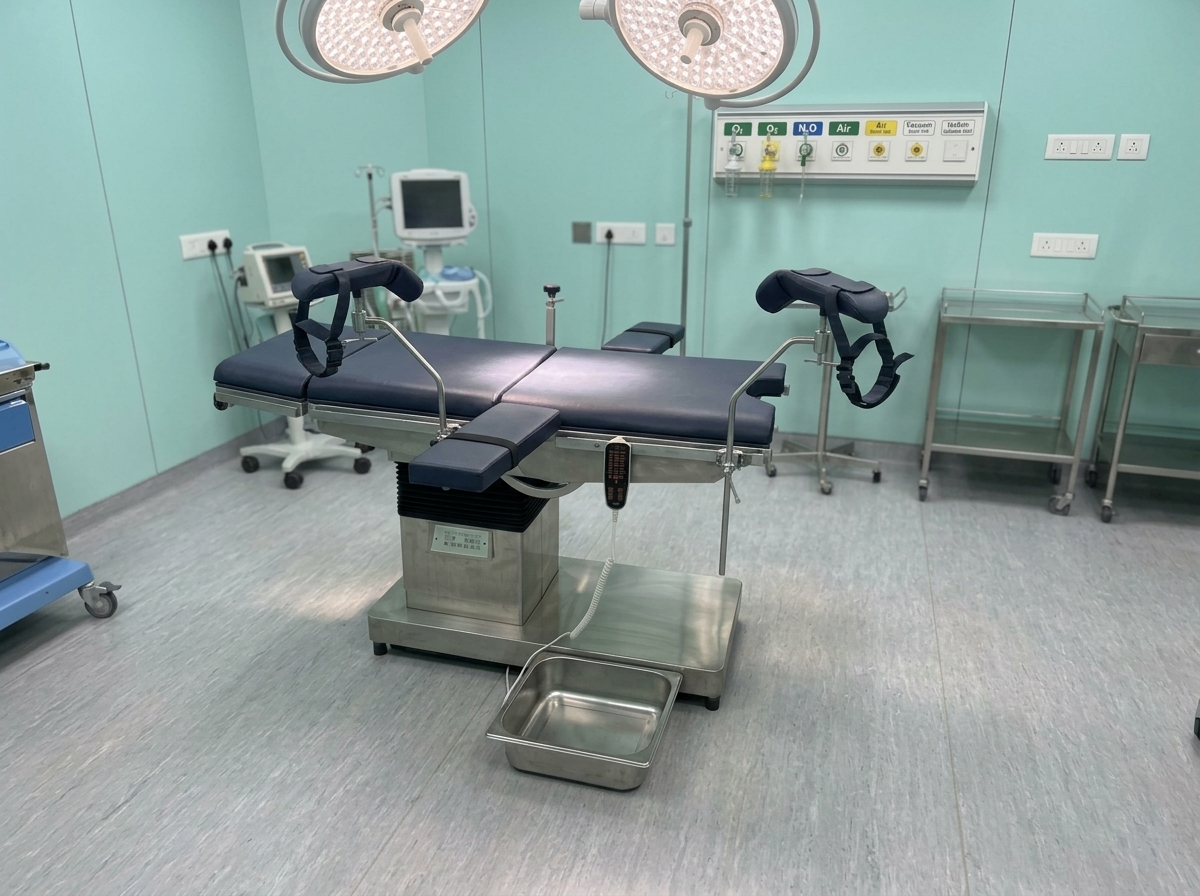

Gynecology OT Table (with Lithotomy Crutches)

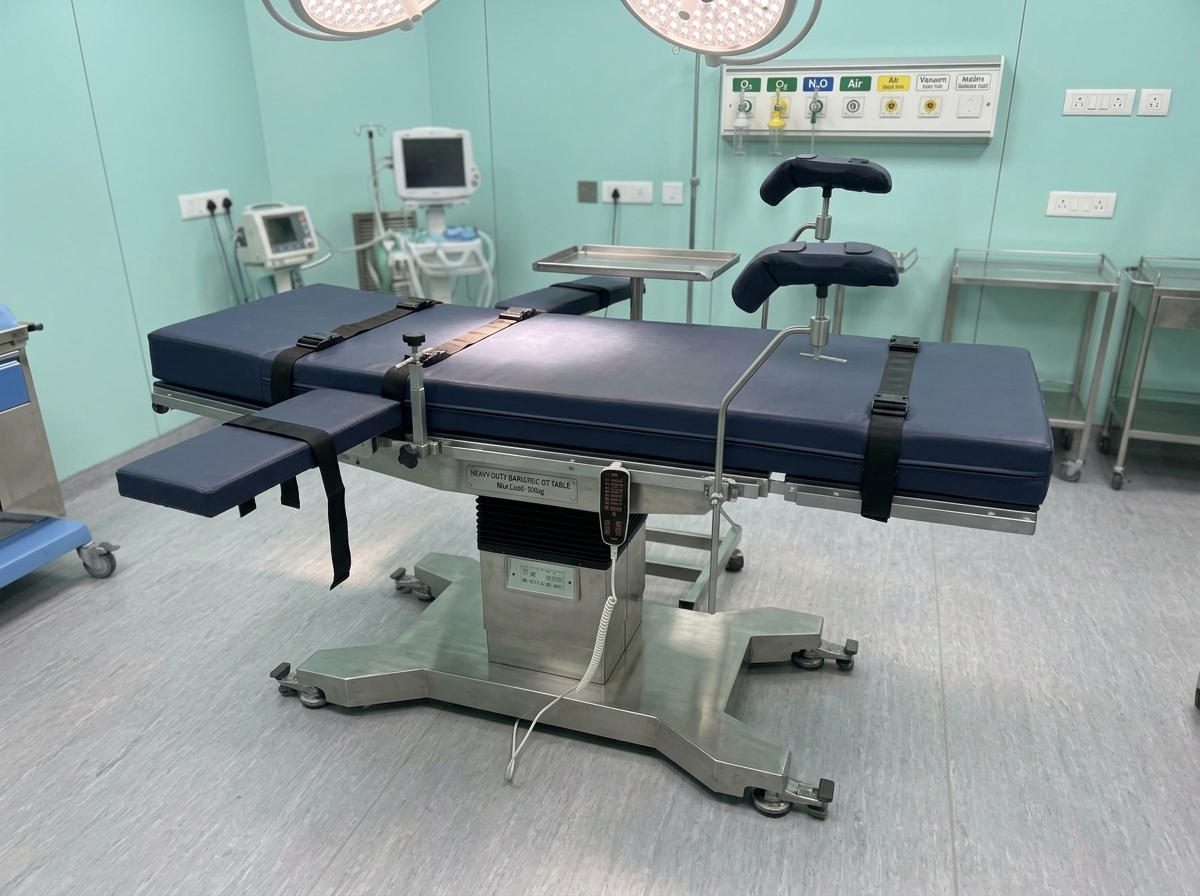

Bariatric OT Table (300kg Capacity)

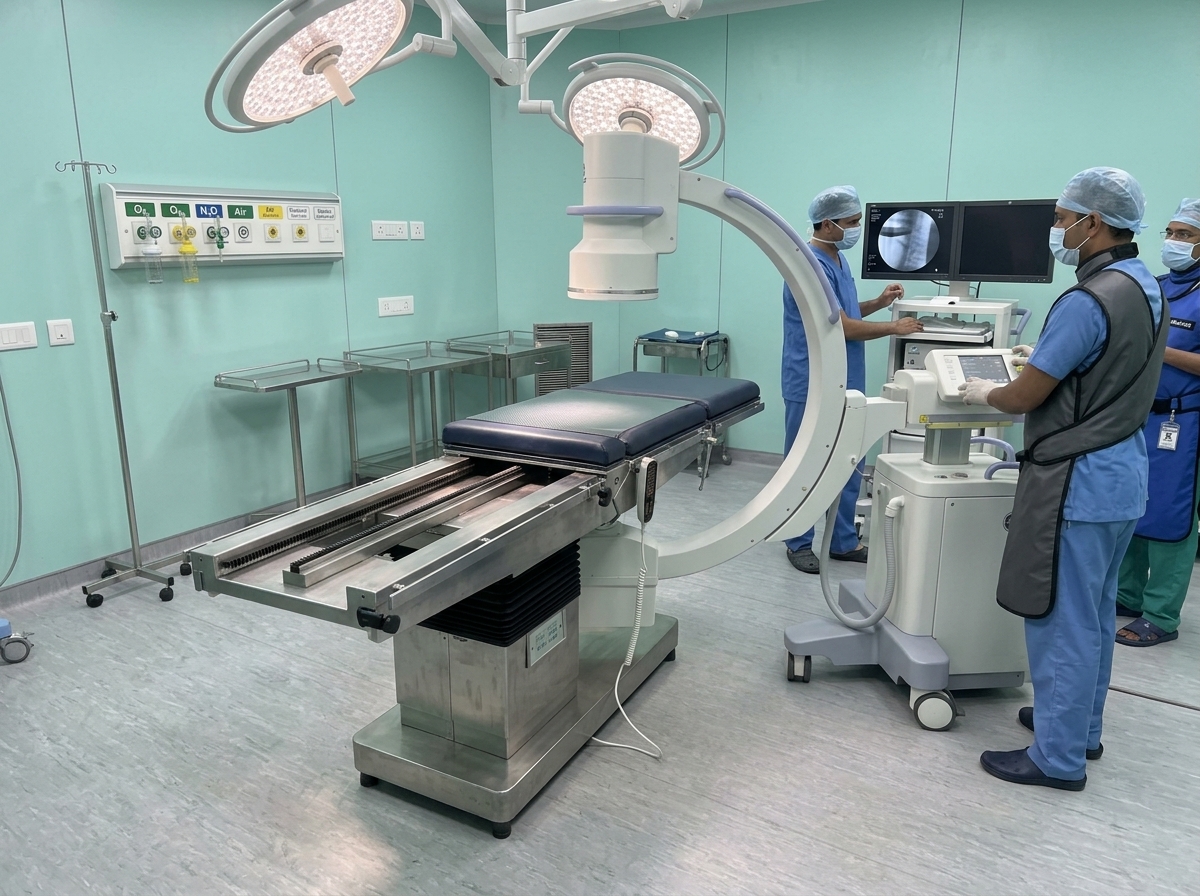

Longitudinal Sliding C-Arm OT Table

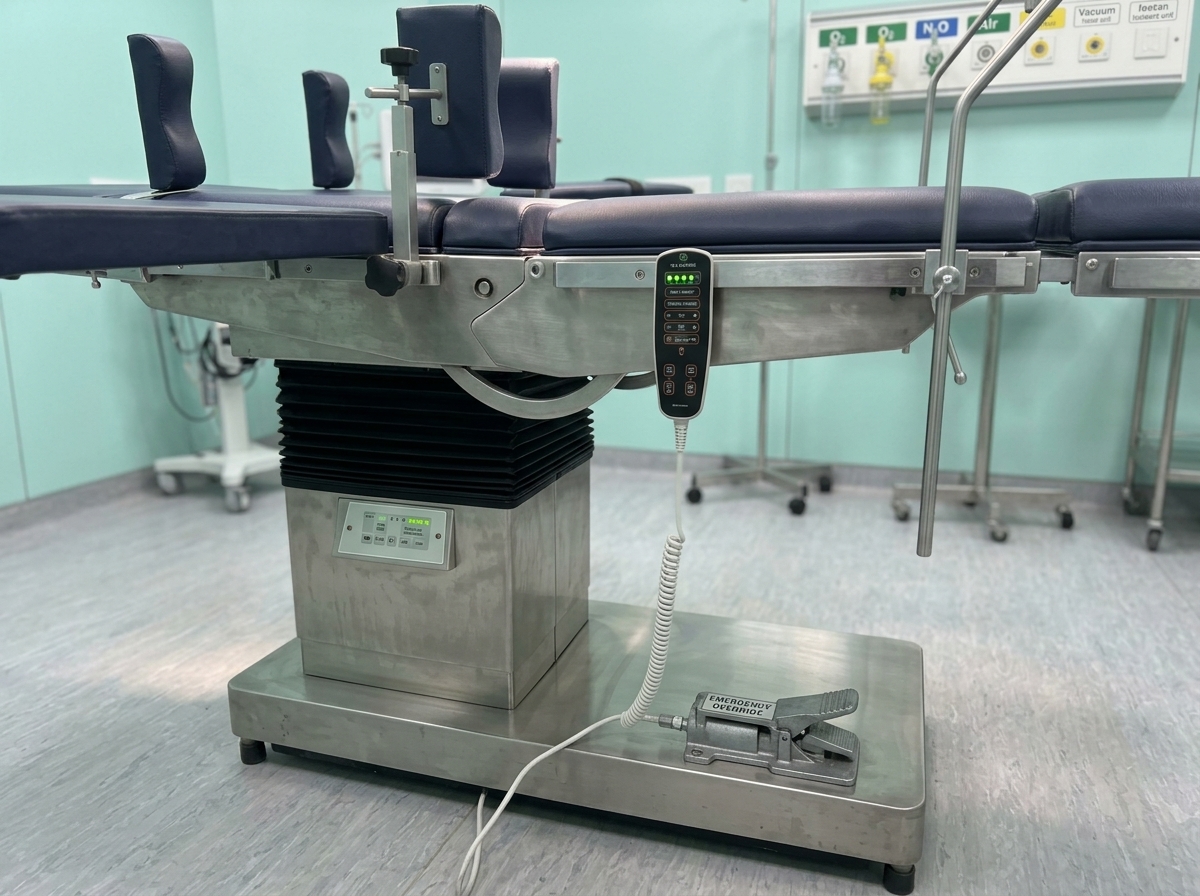

Battery Operated Hydraulic OT Table

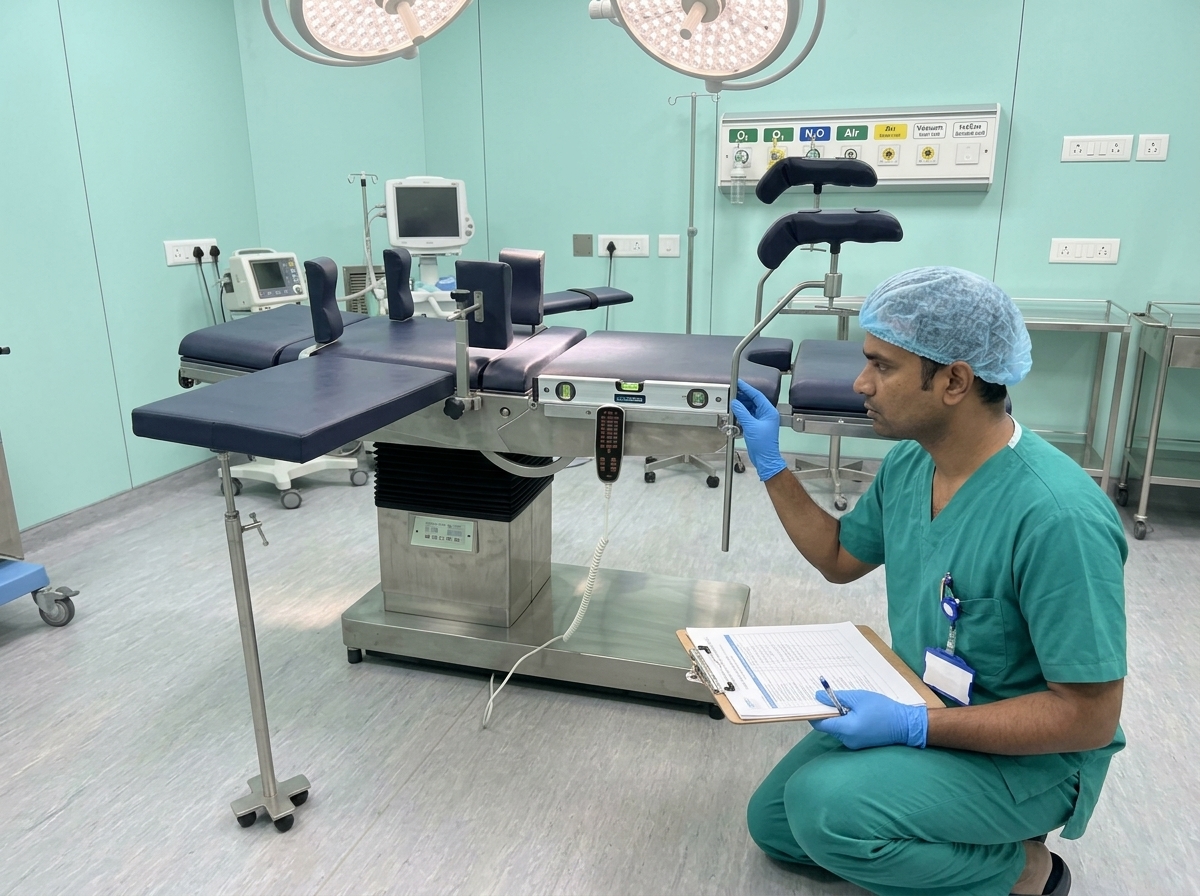

Hospital Handover & Calibration Inspection
Transparent Price Range & Institutional Tenders
Bio Meditech provides direct hospital procurement pricing with no intermediary distributor markups. Indicative pricing guidelines for Indian healthcare facilities:
Standard Mechanical Hydraulic OT Table:
₹55,000 – ₹85,000
Foot-pump hydraulic elevation, manual gear tilt, general surgery
Motorized C-Arm Compatible Surgical Table:
₹1,15,000 – ₹1,95,000
Radiolucent HPL tabletop, motorized height and tilt, remote handset
Electro-Hydraulic Multi-Specialty Table:
₹2,20,000 – ₹3,85,000
Longitudinal slide, 300kg capacity, neuro/cardiac/ortho multi-axis
Orthopedic Fracture Traction Attachment Table:
₹1,80,000 – ₹2,90,000
SS 304 pelvic rest, traction boots, hip & femur fracture positioning
Top 10 High-Intent Buyer Search Queries Covered
Head-to-Head Comparison: Bio Meditech vs. Standard Competitors
Why chief biomedical engineers and surgical procurement committees choose Bio Meditech over standard commercial suppliers across India:
| Technical Parameter | Bio Meditech Standard | Typical Market Competitors |
|---|---|---|
| Drive Mechanism | German-Engineered Hydraulic Pump + Silent Solenoid Valves | Manual mechanical cranks or noisy unbranded linear actuators |
| Safe Working Load | 250 kg to 300 kg Dynamic Load Tested | 135 kg to 160 kg (prone to structural flexing under bariatric cases) |
| C-Arm Fluoroscopy Access | Eccentric Column + 300mm Motorized Longitudinal Slide | Centered column with imaging blind spots requiring patient shifting |
| Tabletop Deck Material | High-Density Radiolucent Carbon-Fiber / Phenolic HPL | Standard laminated wood or metal frame casting shadows on X-rays |
| Chassis & Outer Covers | Satin Brushed Grade 304 Anti-Corrosive Stainless Steel | Painted mild steel sheet metal prone to peeling and rusting |
| Floor Braking System | Electro-Hydraulic Floor Brake Pads with Zero Backlash | Manual screw-down feet prone to drifting during patient transfer |
| Power Outage Protection | Dual Controls + Battery Backup (80 Cycles) + Foot Pump Override | Single hand controller only; inoperable during power cut |
| Extreme Tilt Range | Trendelenburg ±25°, Lateral Tilt ±20°, Built-in Kidney Elevator | Restricted tilt angles (±15° max) limiting neuro/cardiac access |
| Turnkey Delivery & Leveling | Free On-Site Precision Assembly & Leveling from Lucknow Center | Crated courier drop at hospital gate; hospital arranges mechanics |
| Hospital NABH Audit Support | IEC 60601 Electrical Safety, ISO 13485 & 24 Months Warranty | 12 Months warranty with no audit calibration documentation |
Operating Table Sourcing & Sourcing Solutions
Looking for a reliable OT table supplier in India for your hospital or operation theatre project? Bio Meditech assists healthcare providers, nursing homes, surgical centers, and hospital expansion projects across Lucknow, Uttar Pradesh, and North India with sourcing, delivering, installing, and commissioning high-performance electro-hydraulic and specialty surgical operating tables.
A surgical operating table is the core mechanical foundation of any operation theatre suite. Modern surgical tables must deliver smooth, vibration-free multi-directional positioning—including height, Trendelenburg, reverse Trendelenburg, lateral tilt, backrest adjustment, and longitudinal tabletop sliding—while offering radiolucent X-ray transparency for C-arm image intensifiers.
We assist hospital committees, surgeons, and biomedical procurement teams with selecting appropriate operating table configurations based on clinical specialties, room dimensions, C-arm imaging clearances, patient weight requirements, and budget targets.
Key Features & Engineering Advantages
Electro-Hydraulic Micro-Motor Drive
Smooth, silent electro-hydraulic actuators providing precise, vibration-free height and tilt adjustments without disturbing surgeons during micro-procedures.
C-Arm Compatible Radiolucent Top
High-grade carbon fiber or acrylic radiolucent tabletop sections allowing 100% intraoperative C-arm fluoroscopy and X-ray imaging from head to toe.
Longitudinal Motorized Tabletop Slide
Up to 300mm longitudinal sliding movement that shifts the patient toward the C-arm without requiring patient repositioning or manual lifting.
SS 304 Heavy-Duty Chassis
Corrosion-resistant high-grade SS 304 stainless steel base and column cover designed for heavy chemical washdowns and NABH cleanroom compliance.
High Load Capacity (250 kg)
Reinforced column and hydraulic cylinder capable of safely lifting and articulating patient loads up to 250kg under extreme tilt angles.
Battery Backup & Manual Override
Built-in rechargeable battery backup supporting up to 80 full positioning cycles plus column-mounted emergency manual hydraulic pump override.
Operating Table Types & Categories
1. Electro-Hydraulic Operating Tables
Premium motorized tables utilizing electric pumps and hydraulic oil cylinders controlled via hand-held remote cord or wireless Bluetooth remote. Ideal for multi-specialty operating suites requiring smooth, quiet positioning.
2. Manual & Hydraulic Operating Tables
Cost-effective mechanical tables elevated via foot-operated hydraulic oil pumps and positioned via mechanical gear cranks. Popular for emergency rooms, nursing homes, and areas with variable power supply.
3. C-Arm Compatible Fluoroscopy Tables
Engineered with radiolucent tabletops and eccentric column offsets that maximize under-table clearance, enabling unobstructed C-arm imaging during orthopedic, neuro, and vascular procedures.
4. Specialty Surgical Attachment Tables
Modular base tables equipped with quick-connect side rail clamps for orthopedic traction frames, neurosurgical three-pin skull clamps, lithotomy leg stirrups, and urology fluid collection trays.
Specialty Surgical Attachments & Accessories
Orthopedic Traction Frame
Stainless steel fracture traction frame with foot boots and pelvic support for femur and tibia surgeries.
Three-Pin Skull Clamp
Rigid aluminum/titanium head fixation clamp and gel headrest for precise craniotomy head positioning.
Lithotomy Gas-Spring Stirrups
Padded boot stirrups with gas-assisted lift and 3D positioning for laparoscopic gynaecology and urology.
Armboards & Anesthesia Screen
180-degree swiveling padded armboards, body lateral supports, shoulder supports, and height-adjustable anesthesia drape frame.
Our 6-Step Sourcing & Delivery Process
Clinical Requirement Assessment
Understanding surgical specialties, daily case volume, patient weight requirements, and budget parameters.
OT Room & C-Arm Clearance Planning
Evaluating room dimensions, doorway width, floor load capacity, and C-arm image intensifier rotation clearances.
Table Model & Attachment Selection
Recommending electro-hydraulic or manual base tables along with required specialty attachment clamps.
Safe Packaging & Transport
Wooden crate packaging and shock-proof transit from our Lucknow warehouse directly to the hospital OT corridor.
On-Site Unboxing, Assembly & Leveling
Biomedical engineers handle base leveling, hydraulic fluid check, battery charging, and remote control programming.
Staff Demo & Maintenance Support
Hands-on demonstration for OT staff on manual overrides, mattress cleaning, battery care, and Annual Maintenance Contracts (AMC).
Why Choose Bio Meditech Lucknow
Specialized Equipment Supplier: Deep expertise in OT tables, OT lights, surgical pendants, and hospital cleanrooms.
NABH & ISO Compliance Support: Assisting hospitals with equipment quality documentation, CE certificates, and ISO 13485 compliance.
Lucknow Technical Base: Local warehouse stock, prompt delivery across UP/Bihar, and fast on-site biomedical service support.
Long-Term Maintenance Contracts: Comprehensive AMC/CMC coverage, spare remote controls, hydraulic seals, and battery replacements.
Frequently Asked Questions (FAQs)
What is the price of an electro-hydraulic OT table in India?
Electro-hydraulic OT table prices range from ₹55,000–₹85,000 for standard mechanical hydraulic models, ₹1,15,000–₹1,95,000 for motorized C-Arm compatible tables, and ₹2,20,000–₹3,85,000 for advanced electro-hydraulic multi-specialty tables (neuro, cardiac, and bariatric). Complete turnkey quotes include accessories, GST, transport, and on-site leveling.
What is the difference between a mechanical hydraulic and electro-hydraulic OT table?
Mechanical hydraulic tables use manual foot pedals and hand gear cranks to adjust heights and tilts, suitable for general minor surgery. Electro-hydraulic tables use an electric motor pump with solenoid valves controlled via handheld remote and column buttons, providing silent, effortless multi-axis micro-positioning during delicate procedures.
How does C-arm fluoroscopy compatibility work on an OT table?
C-arm compatible tables feature radiolucent carbon-fiber or phenolic tabletop decks with no metal cross-members in the imaging zone. Combined with an eccentric column and up to 300mm motorized longitudinal slide, surgeons obtain complete 100% head-to-toe fluoroscopy without repositioning the patient.
What emergency backup features are included for power outage safety?
Bio Meditech electro-hydraulic tables include a rechargeable battery backup system supporting up to 80 full positioning cycles, a column-mounted secondary manual control panel, and a manual foot hydraulic pump override in case of complete electronic failure.
What quality documentation is provided for hospital NABH accreditation audits?
Bio Meditech supplies factory test inspection sheets, electrical safety reports (IEC 60601-1 standards), ISO 13485 manufacturing documentation, and warranty certificates required for hospital NABH accreditation inspection files.
