Hospital Beds & Ward Patient Beds Manufacturer
Precision-fabricated manual and motorized ward beds engineered from heavy-gauge CRCA rectangular steel tubing with 8-tank pre-treated epoxy powder coating, smooth fold-away mechanical crank worm gears, collapsible safety railings, and 200 kg safe working load.
9 Certified Hospital Bed Models & Accessories
Explore our proven manual and motorized ward beds deployed in government hospital medical colleges, district hospitals, corporate healthcare facilities, and nursing homes across India.
Semi-Fowler Manual Ward Bed (1-Crank Backrest Elevation)
Engineered with a smooth fold-away mechanical worm screw handle providing backrest elevation from 0° to 70°. Features collapsible stainless steel side safety railings, epoxy powder-coated frame, and 125mm diagonal brake castors.
Heavy-Duty Ward Durability & Clinical Safety
Engineered to endure the rigorous 24/7 demands of high-occupancy hospital wards with zero mechanical jamming, anti-corrosive finishes, and ergonomic patient positioning.
Heavy-Gauge CRCA Steel Frame
Fabricated with cold-rolled close annealed (CRCA) rectangular steel tubing (1.6mm wall thickness). CNC robotic welding ensures structural rigidity supporting up to 200 kg safe working load.
8-Tank Chemical Pretreatment
Hot degreasing, derusting, phosphating, and deionized rinsing followed by 70-micron antimicrobial pure polyester epoxy powder coating baked at 200°C for exceptional resistance to harsh disinfectant washes.
Non-Jamming Worm Screw Cranks
High-tensile brass/bronze nut and cold-drawn threaded worm screw mechanism with built-in end-of-travel slip clutch preventing gear over-tightening. Handles fold away smoothly under the frame.
Collapsible SS / Aluminium Railings
Ergonomic side safety rails with one-touch red release latch. Fold down effortlessly flush with mattress height for zero-gap lateral patient transfer onto stretchers or wheelchairs.
Uniform Perforated Platform
Heavy-gauge uniformly perforated CRCA steel sheet top provides continuous air ventilation beneath the mattress, preventing heat buildup and reducing bed sore risk for long-stay recovery patients.
125mm Silent Diagonal Castors
High-grade non-marking polyurethane synthetic rubber wheels with thread guards and independent pedal foot brakes on diagonally opposed wheels to eliminate unwanted bed drift.
Transparent Hospital Bed Pricing Brackets (India)
Direct manufacturer supply packages and hospital tender pricing. Aligned with GeM portal BOQ standards, state healthcare procurement criteria, and private nursing home budgets.
Plain Hospital Ward Bed
- Heavy-Duty CRCA Steel Tubular Framework
- Perforated Steel Top / Wire Mesh Platform
- Tubular Steel Head & Foot Bows (Detachable)
- 4 Provision Holes for Telescopic IV Pole
Semi-Fowler Hospital Bed (1-Crank)
- Smooth Fold-Away Mechanical Crank for Backrest (0°–70°)
- Collapsible Aluminium / SS Side Safety Guard Rails
- Molded ABS Head & Foot Panels with Chart Holder
- 100mm / 125mm Castors with Diagonal Step Brakes

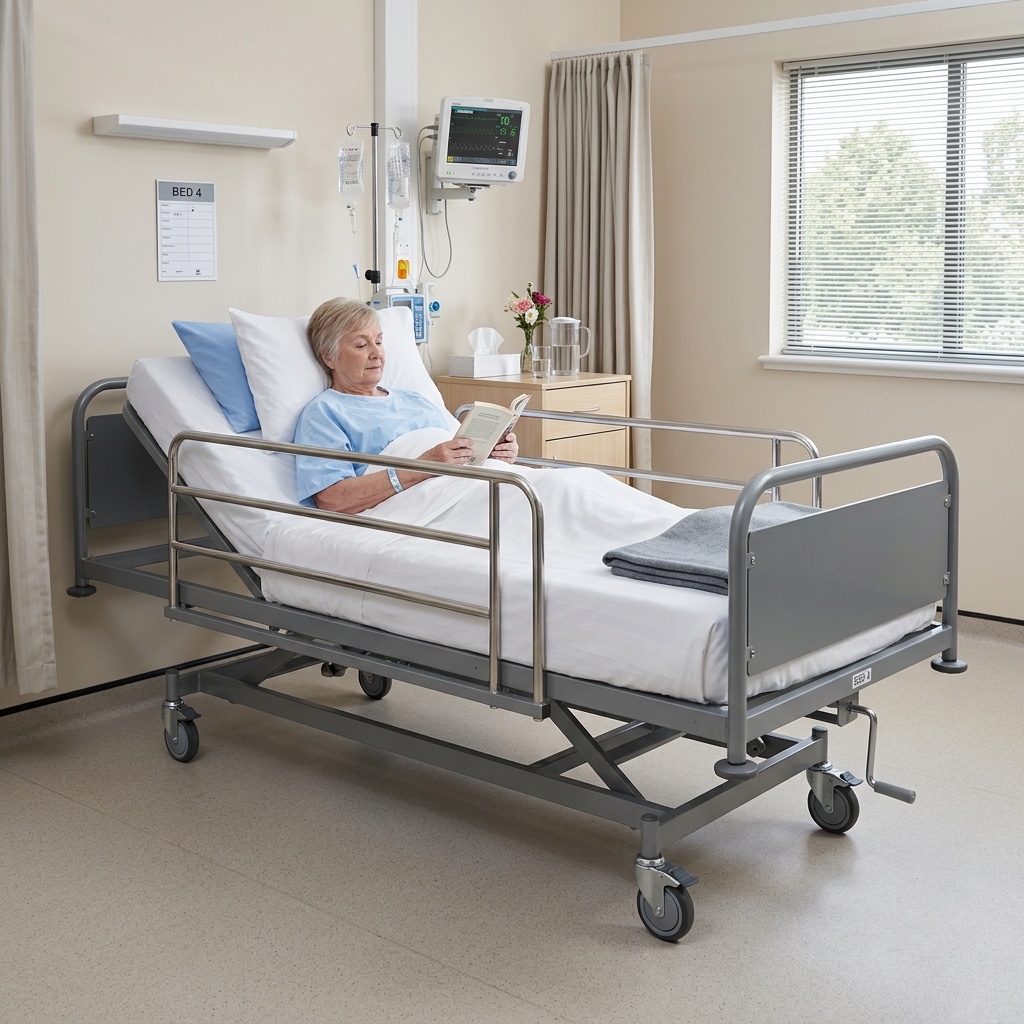

Full-Fowler Hospital Bed (2-Crank)
- Dual Cranks: Backrest (0°–70°) & Knee-Rest (0°–35°)
- 4-Section Perforated CRCA Steel Mattress Deck
- Reinforced ABS Protective Corner Buffers
- Urine Bag Hooks & 2-Stage SS Telescopic IV Stand

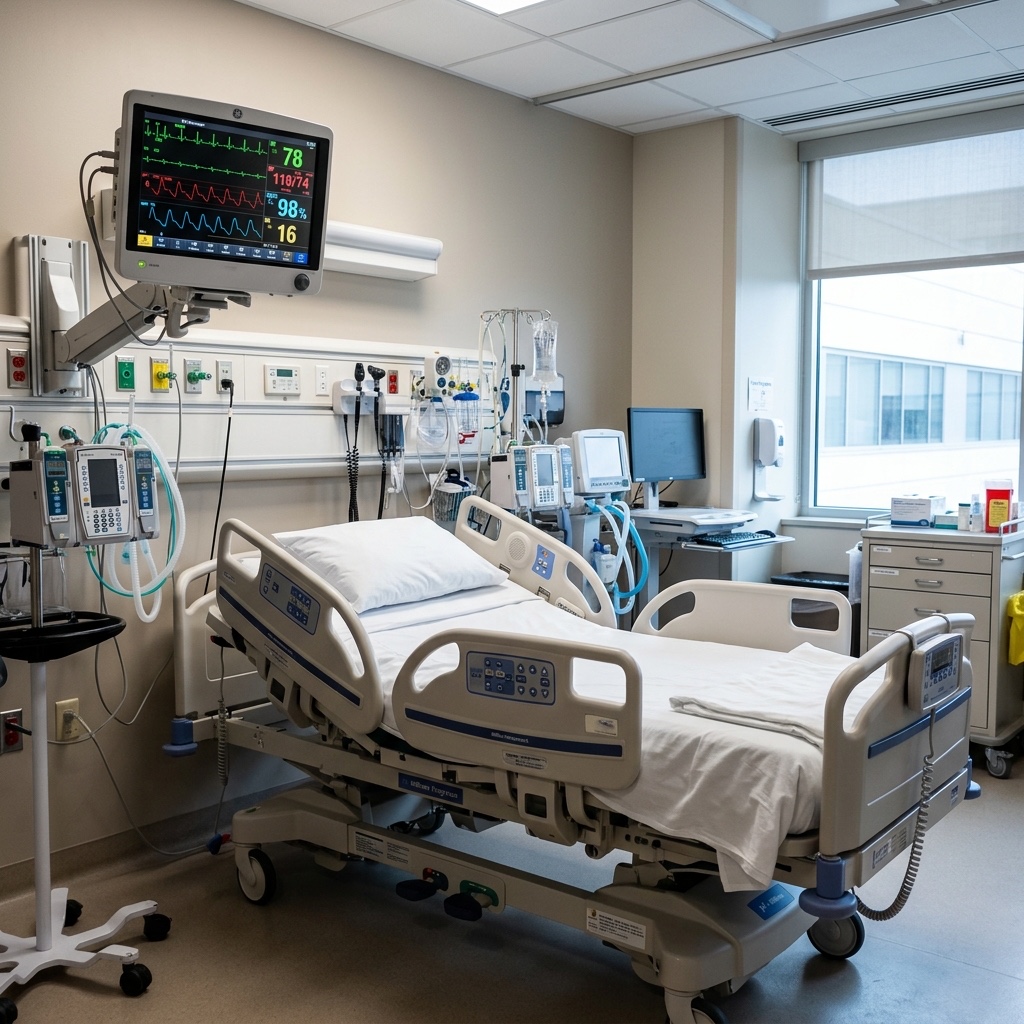

Motorized 2-Function Electric Ward Bed
- Whisper-Quiet Medical Linear Actuators (Linak/TiMotion)
- Handheld Patient Remote with Nurse Lockout Function
- Emergency Manual CPR Quick Backrest Release
- Optional Central Locking 125mm Castor Brake Bar
Head-to-Head 10-Competitor Hospital Bed Matrix
A comprehensive technical evaluation comparing Bio Meditech against leading hospital bed manufacturers across steel thickness, coating quality, crank mechanism longevity, warranty, and UP local service dispatch.
| Brand / Model | Steel Gauge & Chassis | Chemical Coating | Crank Mechanism | Safe Load (SWL) | Side Railings | UP Assembly Support | Price Benchmark |
|---|---|---|---|---|---|---|---|
| Bio Meditech (BM-HB Series) | 1.6mm Heavy CRCA Rectangular Steel | 8-Tank Pretreatment + 70μ Pure Epoxy | Smooth Fold-Away Brass Worm Nut | 200 kg SWL Certified | Collapsible Aluminium Alloy / SS | Same-Day Ward Assembly (UP) | ₹14,000 – ₹38,000 (Factory Direct) |
| Arjo (Enterprise Series) | European Heavy Steel Tube | Standard Powder Coat | Electric Actuator Driven | 225 kg SWL | Split ABS Tuck-Away | Metro Only (Delhi/Mumbai) | ₹95,000 – ₹2,40,000 |
| Hillrom (Centuris Ward) | Heavy Gauge Robotic Welded | Antimicrobial Powder Coat | Dual Crank / Motorized | 220 kg SWL | Dampened Drop Rails | Third-Party Logistics | ₹85,000 – ₹1,90,000 |
| Stryker (SV2 Ward Bed) | High-Strength Steel Alloy | Heavy Epoxy Baked Finish | Electric Linak Actuators | 230 kg SWL | One-Hand Fold Down | Corporate Depot Dispatch | ₹1,10,000 – ₹2,80,000 |
| United Poly (Ward Series) | 1.2mm – 1.4mm CRCA Tube | Standard Chemical Wash | Manual Fold Crank | 160 kg SWL | Aluminium Channel Rails | 24 – 48 Hours | ₹16,000 – ₹42,000 |
| Midmark India (Crown Series) | 1.4mm CRCA Tubular Frame | Epoxy Powder Coat | Telescopic Screw Crank | 175 kg SWL | Collapsible Safety Rails | Distributor Managed | ₹24,000 – ₹62,000 |
| Narang Medical (NET Series) | 1.2mm MS Tubular Steel | Basic Powder Coating | Standard Screw Jack | 150 kg SWL | Stainless Steel Pipe Rails | Transport via Transporter (Self Assembly) | ₹15,000 – ₹36,000 |
| Janak Healthcare (Fowler) | 1.4mm CRCA Rectangular Tube | 7-Tank Treated Powder Coat | Double Crank Screw | 175 kg SWL | ABS / Aluminium Guard Rails | Authorized Dealer Network | ₹26,000 – ₹68,000 |
| Paramount Bed (A5 Series) | Japanese Precision Steel Chassis | High-Durability Resin Coat | Motorized / Manual Crank | 220 kg SWL | Gas-Spring Assist Drop Rails | Metro Hubs (48 – 72 Hours) | ₹1,25,000 – ₹3,20,000 |
| GPC Medical (Standard Ward) | 1.2mm MS Pipe Frame | Pre-treated Epoxy Finish | Manual Fold Crank | 150 kg SWL | Standard Drop Down | Delhi Transporter Dispatch | ₹14,500 – ₹35,000 |
6-Step Turnkey Delivery, Ward Assembly & Handover
How Bio Meditech delivers high-volume hospital bed consignments seamlessly with complete on-site assembly, mechanical calibration, and zero hospital administrative disruption.
Ward Layout & Bed Density Planning
Biomedical assessment of ward floor space, clearance distances between patient beds (minimum 1.5m NABH standard), emergency stretcher turnarounds, and BOQ configuration matching GeM tender criteria.
Batch Transit-Safe Protective Packing
Individual bubble wrap, multi-layer corrugated edge edge-guards, and heavy shrink-wrap film applied to all epoxy-coated steel frames, ABS boards, and railings to ensure scratch-free transit.
On-Site Ward Unboxing & Assembly
Our technicians bring beds directly into the designated ward rooms, unbox the frames, attach detachable ABS or tubular head/foot bows, and secure heavy-duty 125mm castors.
Crank Calibration & Railing Alignment
Testing mechanical worm gears under test load for smooth backrest (0°–70°) and knee-rest (0°–35°) articulation. Lubricating high-friction joints and ensuring safety railing lock triggers snap securely into place.
Mattress & Accessory Fitting
Installing 4-section high-density PU medical mattresses, mounting stainless steel telescopic IV poles with dual hooks, and attaching bilateral urine bag hooks.
Nursing In-Charge Demonstration & Sign-Off
Practical demonstration for ward nursing supervisors on fold-away crank handling, side rail drop release, castor step-locking, and issuing signed warranty and asset handover documentation.
Hospital Ward Beds Procurement FAQs
Detailed answers on bed classifications, mechanical crank mechanisms, hospital tender pricing, and maintenance standards.
What is the difference between a Semi-Fowler and a Full-Fowler hospital bed?
A Semi-Fowler bed (1-crank) allows mechanical elevation of the backrest section only (typically 0° to 70°), assisting patients with breathing, eating, and sitting up in general wards. A Full-Fowler bed (2-crank) features two independent mechanical crank systems that allow elevation of both the backrest section (0° to 70°) and the knee-rest section (0° to 35°), promoting venous blood circulation and relieving pressure on the lower spine in recovery and surgical observation wards.
What is the price of a hospital bed in India?
In India, hospital bed pricing ranges from ₹7,500 to ₹14,500 for plain general ward beds; ₹14,000 to ₹24,000 for standard semi-fowler manual 1-crank beds with collapsible railings; ₹22,000 to ₹38,000 for full-fowler 2-crank hospital beds with ABS panels; and ₹42,000 to ₹85,000 for 2-function motorized electric ward beds with patient remote pendants. Bio Meditech provides direct factory prices with bulk institutional discounts for hospital tenders.
What steel thickness and surface coating are used to prevent hospital rust?
Bio Meditech hospital beds are constructed from heavy-gauge (1.6mm wall thickness) cold-rolled close annealed (CRCA) rectangular steel tubing. The frames undergo an intensive 8-tank chemical pretreatment process (hot chemical degreasing, derusting, phosphating, passivation) followed by electrostatically sprayed pure polyester epoxy powder coating (70-micron film) baked in ovens at 200°C. This ensures complete resistance to hospital bleach, chlorhexidine, and repeated chemical mopping.
What is the safe working load (SWL) capacity of your ward beds?
All Bio Meditech manual and electric ward beds are certified for a Safe Working Load (SWL) of 180 kg to 200 kg (with a static load capacity exceeding 300 kg). The under-bed cross-bracing chassis and heavy mechanical worm screw shafts prevent sag and distortion even under repeated long-term bariatric patient occupancy.
Can the headboards and footboards be removed quickly in emergencies?
Yes. Our molded ABS headboards and footboards are engineered with quick-release drop-in locking pins. In an emergency cardiac arrest or airway obstruction, medical staff can lift off the headboard in under 3 seconds to achieve 360-degree unobstructed access to the patient’s head for emergency endotracheal intubation or CPR.
Does Bio Meditech provide on-site ward assembly and supply in Uttar Pradesh & India?
Yes. Headquartered in Lucknow, our biomedical logistics fleet and field technicians deliver and assemble beds on-site across Lucknow, Kanpur, Varanasi, Gorakhpur, Prayagraj, Bareilly, Meerut, and throughout North India. We assemble the frames in your wards, fit the castors, test the cranks, position the mattresses, and provide ready-to-use handover for NABH audit inspection.
Equip Your Hospital Wards With Certified Beds
Speak directly with our healthcare furniture engineers in Lucknow. Request bulk BOQ quotations, GeM tender specifications, or custom color and railing configurations.
