Ceiling Anesthesia Pendants & Workstation Columns
Ceiling-suspended motorized and articulated anesthesia pendants engineered for modern modular operation theatres. Consolidates medical gases (O2, N2O, Air, Vac), active AGSS scavenging, high-current electrical power, and patient monitoring into a single ergonomic head-zone column—clearing all floor clutter for zero infection risk.
Dual-arm motorized anesthesia pendant with integrated gas outlets & patient monitor shelf.
9 Specialized Anesthesia Pendant Configurations
Click any model to inspect clinical specifications, gas outlet combinations, pneumatic braking systems, and structural ceiling anchorage details.
Motorized Dual-Arm Anesthesia Workstation Pendant (Integrated AGSS)
Engineered specifically for operation theatre anesthesia head zones. Features electric motorized vertical elevation (500mm travel), dual articulated swivel arms (330° + 330°), medical gas outlets (O2, N2O, Air 4 bar, Vacuum, AGSS), multi-tier monitor shelves, and an under-shelf lockable anesthesia drug drawer.
Core Technical Specifications
Motorized Height Travel
Whisper-quiet linear electric actuator mechanism delivers 550mm of stepless vertical stroke. Enables instant ergonomic adjustment for sitting or standing anesthesiologists and lifts all hoses off the floor during theatre terminal cleaning.
- Smooth electronic soft-start/soft-stop
- Push-button rocker switch on console handle
- Emergency mechanical override release
Active AGSS Scavenging Port
Integrated Anaesthetic Gas Scavenging System (AGSS) terminal unit connected to a ceiling vent pipeline actively extracts expired halogenated anesthetics (isoflurane, sevoflurane) and nitrous oxide, safeguarding OT staff from toxic exposure.
- BS 6834 / ISO 9170-2 compliant AGSS port
- Integrated visual flow-indicator ball
- Fully isolated gas channel shielding
Pneumatic Disc Braking
High-reliability pneumatic disc brakes on each articulated joint prevent arm drifting caused by uneven floor vibration or heavy monitor off-centering. Operated via push buttons located conveniently on the ergonomic control handles.
- Compressed air powered friction clamp
- Zero drift under 220 kg maximum payload
- Automatic default fail-safe lock on power loss
Technical Specifications: Bio Meditech Anesthesia Pendant Series

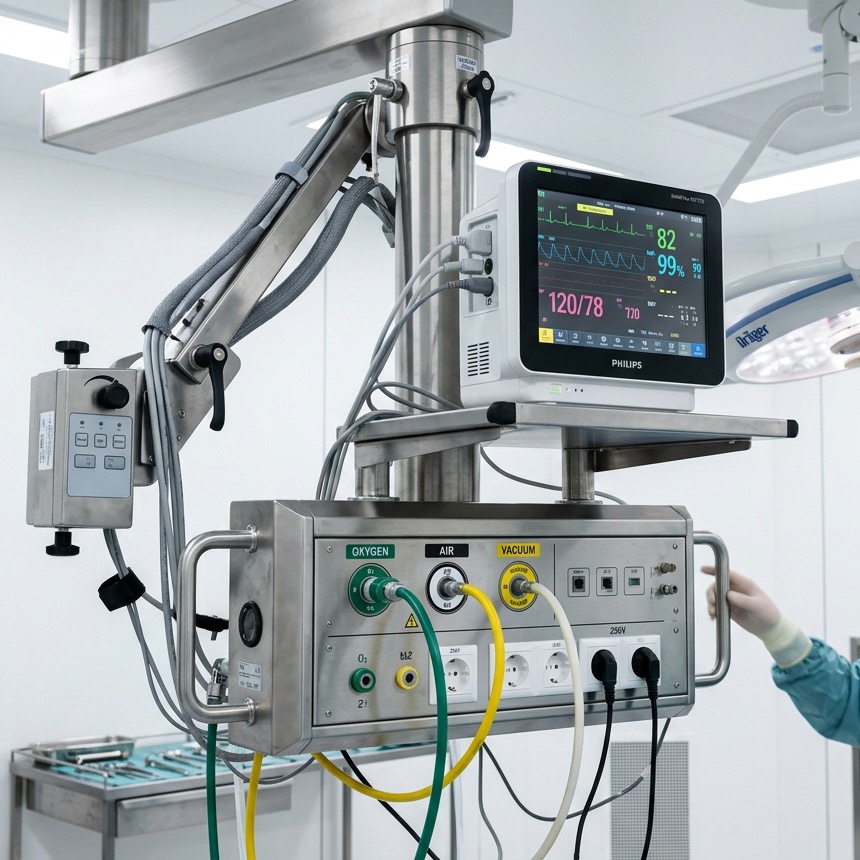

HTM 02-01 & ISO 11197 Compliant| Parameter | Single-Arm Fixed Column (PACU) | Dual-Arm Articulated Mechanical | Motorized Dual-Arm Workstation |
|---|---|---|---|
| Arm Configuration | Single Swivel Arm (800mm length) | Dual Swivel Arms (1000mm + 800mm) | Dual Articulated Arms (1000mm + 800mm) |
| Rotation Angle | 330° Single Joint Rotation | 330° + 330° Dual Joint Rotation | 330° + 330° with Rotation Dampening |
| Vertical Height Adjustment | Fixed Height Column (Custom 600-1200mm) | Fixed Height Column | 550 mm Motorized Electric Stroke |
| Safe Working Load (SWL) | 120 kg | 180 kg | 220 kg (Tested to 440 kg proof load) |
| Gas Outlets Configuration | O2 (1x), N2O (1x), Air4 (1x), Vac (1x) | O2 (2x), N2O (1x), Air4 (2x), Vac (2x), AGSS (1x) | O2 (2x), N2O (1x), Air4 (2x), Vac (2x), AGSS (1x) |
| Electrical & Data Outlets | 6x Universal Sockets, 2x RJ45 Data | 8x Universal Sockets, 2x RJ45, 1x Equipotential | 10x Universal Sockets, 4x RJ45, 2x Equipotential |
| Braking System | Adjustable Mechanical Friction Brake | Pneumatic Disc Brake with Push Button | Dual Pneumatic Disc + Electromagnetic Friction |
| Shelving & Drawers | 2x Fixed Shelves (DIN Rail) | 2x Height-Adjustable Shelves + 1x Drawer | 3x Adjustable Shelves + 1x Lockable Drug Drawer |
Request Technical BOQ & Institutional Quote
Submit your operation theatre pendant requirements for immediate factory-direct pricing, structural CAD drawings, and GeM tender authorization.
